HiSprayer Road Marking Machine Family Introduction: The game-changer of Line Striping Business

hs-line-01 - 副本

HiSprayer Road Marking Machines – Product Categories

Power Types:

Electric Powered: HS27 E

Gas Powered: HS27, HS27-II, HS27-II Pro, HS50, HS50-II, HS58

Gas Hydraulic: HSP99, HSP91

Number of Pumps:

Single Pump Models: HS27 E, HS27, HS50, HS58, HSP99

Dual-Component Series: HS27-II, HS27-II Pro, HS50-II, HSP91





The list above provides a simple classification of the HiSprayer road marking machine lineup. Understanding their common features and key differences helps us determine how each model can meet specific needs. This makes it easier to choose the right machine based on customized requirements.



Now, let’s start by exploring the common features shared across these models.



hs-line-03 - 副本



Common Features of HiSprayer Road Marking Machines



Smart Control System (Except HSP99 & HSP91)

HiSprayer road marking machines feature a visual digital display panel for precise spray pressure control. The smart control system maintains consistent spray pressure, ensuring accurate line marking while making operation significantly easier.



Aviation-Grade Aluminum Manifold for Stable Spraying Performance

Unlike standard aluminum, HiSprayer road marking machines are equipped with aviation-grade aluminum manifold filters. This high-quality material provides superior strength, excellent mechanical performance, and enhanced corrosion resistance. During prolonged continuous spraying operations, fluid impulses are minimized, ensuring smoother and more stable spraying performance.



360° Self-Adjusting Front Wheel

Another key factor in achieving stable spraying performance lies in the wheel design. HiSprayer machines utilize a dual precision bearing system to enhance operational stability. This feature ensures easy straight-line tracking while allowing for smooth maneuverability during various transfer operations.



Multi-Functional Spray Gun Holder

HiSprayer provides greater flexibility in line marking. The adjustable spray gun holder allows for multi-directional positioning, including front, rear, up, down, left, and right. This adaptability meets diverse application needs, making road marking more efficient.



Specialized Spray Gun & Tip for Line Marking

HiSprayer road marking machines come equipped with dedicated line marking spray guns and nozzles, ensuring fast response times and precise control over different line widths.



Optional Line Driver Compatibility

The frames of HiSprayer road marking machines include a reserved interface for connecting a line driver. This optional feature enhances efficiency, making line marking operations even easier.



Optional Glass Bead Dispenser

To meet high industry standards and provide more application options, HiSprayer road marking machines support the installation of an optional glass bead dispenser. Two versions are available:

·   Standard Version – Gravity-driven

·    APS-II Version – Pneumatically driven





Differences Between HiSprayer Road Marking Machines



Unique Two-Component Pump Assembly Design

Certain HiSprayer road marking machines feature a dual-reinforced piston pump, enabling the spraying of dual-component or multi-component paints. This makes them ideal for complex line marking applications.

Two-Component Road Marking Models: HS27-II, HS27-II Pro, HS50-II, HSP91



Different Power Types

Electric-Powered Line Striper
The HS27 E is a battery-powered pavement marking machine, making it an excellent choice for regions where fuel costs are high. Users can select battery capacities based on their specific painting needs.

Model: HS27 E



Gas-Powered Paint Striping Machines
Most HiSprayer road marking machines (except the HS27 E) are powered by Honda engines, a top choice among contractors for their reliability and efficiency.

Models: HS27, HS27-II, HS27-II Pro, HS50, HS50-II, HS58, HSP99, HSP91



Gas Hydraulic-Powered Road Marking Machines

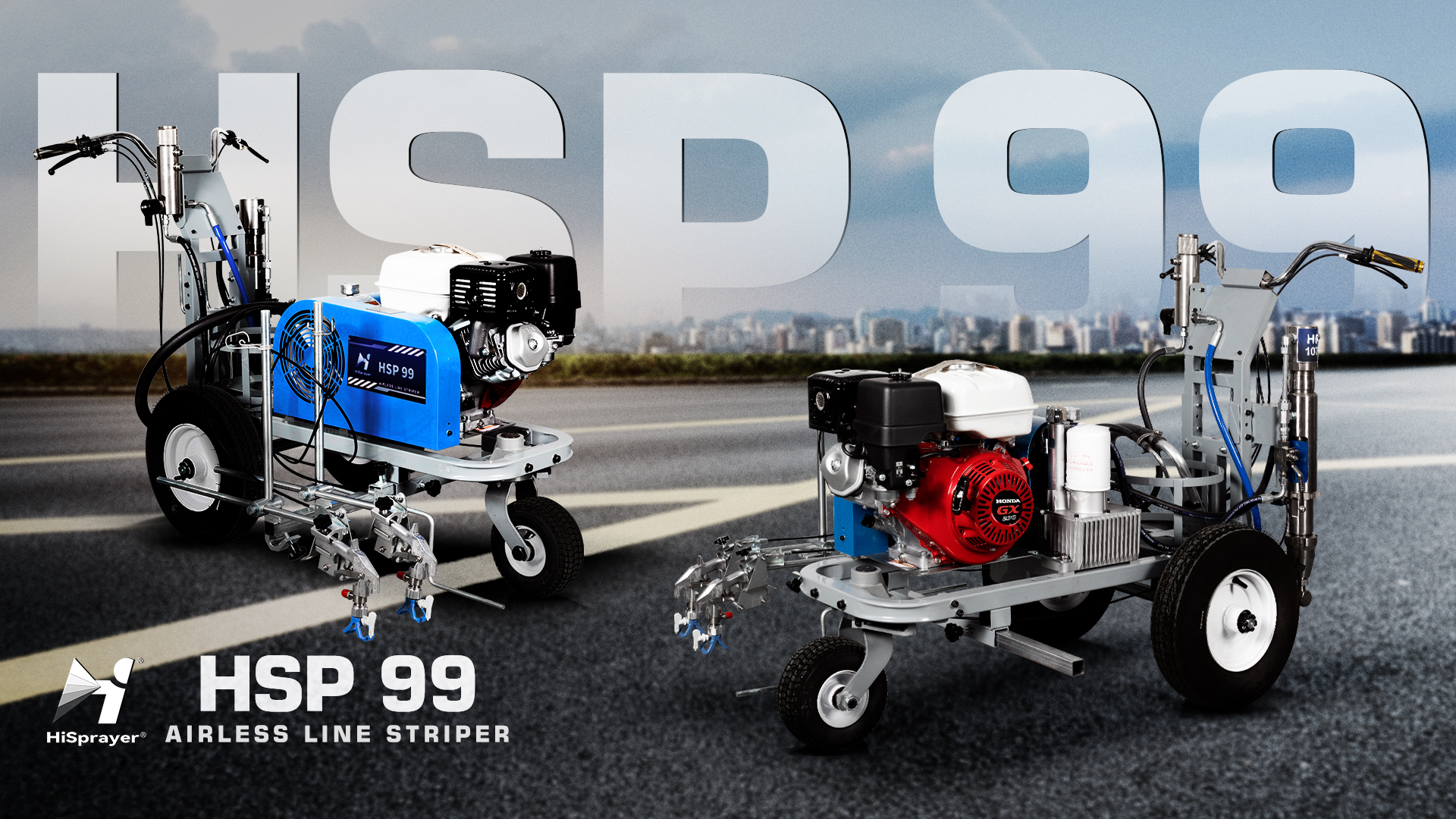

HSP99 and HSP91 utilize a high-efficiency hydraulic motor, designed to handle high-viscosity materials with exceptional durability and consistent performance. These models ensure smooth, continuous operation, offering quick responsiveness, easy maintenance, and an extended lifespan.

Models: HSP99, HSP91



Key Differences Between HS27-II and HS27-II Pro

The primary difference between the HS27-II and HS27-II Pro is the frame design. The HS27-II Pro features a reinforced frame, providing enhanced durability and greater reliability for demanding line marking tasks.



 hs-line-02 - 副本

Quick Specifications Comparison

Model No. HS27 HS27-II HS27-II Pro HS50 HS50-II HS58 HSP99 HSP91 HS27 E
Power Type Honda Engine Honda Engine Honda Engine Honda Engine Honda Engine Honda Engine Honda Engine

&

Hydraulic Pump

Honda Engine &

Hydraulic Pump

Battery
Dynamic Power 3100W/4.1HP 3100W/4.1HP 3100W/4.1HP 3100W/4.1HP 3700W/5.0HP 3700W/5.0HP 5100W/6.8HP 5100W/6.8HP 2200W, 60V
Flow Delivery 2.7L/min 5.0L/min 5.0L/min 5.0L/min 8.8L/min 5.8L/min 9.9L/min 9.1L/min 2.5L/min
Working Pressure 23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

23MPa

3336psi

22.5MPa

3263psi



Max. Nozzle Size 0.027” 1 gun with 0.033”

2 guns with 0.023”

1 gun with 0.033”

2 guns with 0.023”

1 gun with 0.035”

2 guns with 0.025”

1 gun with 0.045”

2 guns with 0.031”

1 gun with 0.035”

2 guns with 0.025”

1 gun with 0.053”

2 guns with 0.038”

1 gun with 0.053”

2 guns with 0.038”

3 guns with 0.032”

4 guns with 0.028”

0.027”
Optional Line Driver Line Driver Line Driver Line Driver Line Driver Line Driver Line Driver Line Driver Line Driver
Optional Bead Dispenser Bead Dispenser Bead Dispenser Bead Dispenser Bead Dispenser Bead Dispenser Bead Dispenser/APS-II Bead Dispenser/APS-II Bead Dispenser





Conclusion

HiSprayer road marking machines are designed to meet a wide range of line striping needs, from simple pavement marking to complex dual-component applications. With options for electric, gas-powered, and gas-hydraulic systems, users can select the ideal machine based on their specific requirements.



Key features such as the smart control system, aviation-grade aluminum manifold, self-adjusting front wheel, and specialized spray gun setup ensure precision, durability, and efficiency in every marking job. Additionally, HiSprayer’s compatibility with optional line drivers and glass bead dispensers enhances performance and adaptability.



For professionals seeking a reliable, high-performance road marking solution, HiSprayer offers a well-structured lineup with clear distinctions between models, making it easier to choose the right machine for any application. Whether for routine road striping or high-demand industrial projects, HiSprayer machines deliver outstanding results with long-lasting durability.


Post time: Mar-14-2025
